• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 150746

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 220-230/ 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

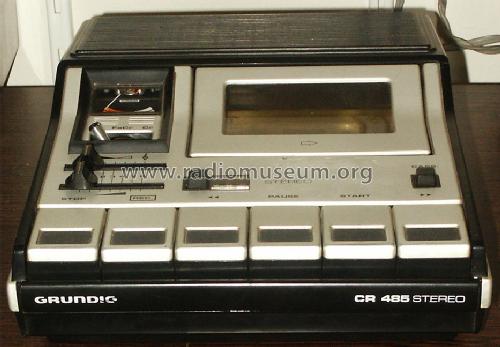

• Model: CR485 Stereo - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 80 x 280 mm / 8.3 x 3.1 x 11 inch

• Notes
• Grundig CR 485 Stereo;
  Kassettenrekorder für Heim & Mobilbetrieb, ein Anzeigeinstrument, Mono Electret-Kondensator Mikrofon, Fe/FeCr/Cr Bandwahlschalter, Aufnahmeautomatik, Bandzählwerk, Klangwaage, Auto-Stop, braun-metallic, DIN Anschlüsse.
  Äußerlich baugleich mit der Mono Ausführung Grundig "CR 455".

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 185.00 DM

• Mentioned in
• -- Original prospect or advert (D Grundig Revue ~1980)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
