• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1955

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 71085

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF804 ECC81 EL42 EL84 EM71

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 127 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

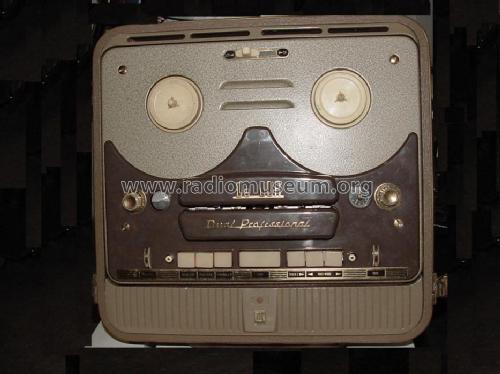

• Model: De Jur dual professional TK820/3D - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Made in Germany for the American market incl. Canada.

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• External source of data
• Instruction-manual
