TM340 de Luxe

TM340 de Luxe; Grundig Radio- (ID = 442003) R-Player
Use red slider bar for more.
TM340 de Luxe; Grundig Radio- (ID = 442003) R-Player

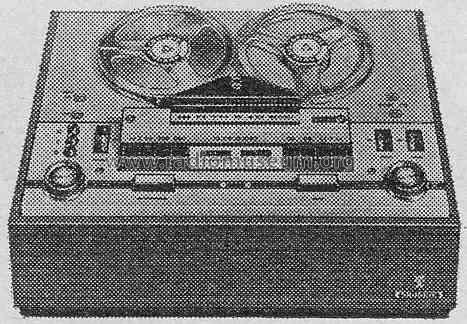

Grundig Radio-: TM340 de Luxe [R-Player] ID = 442003 467x324
Select picture or schematic to display from thumbnails on the right and click for download.
For model TM340 de Luxe, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1968/1969 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: ECC81 ECC81 ECC81 EF86 EF86 EL95
Semiconductors (the count is only for transistors) 2: BC107 BC107
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TM340 de Luxe - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Chassis only or for «building in»
Dimensions (WHD) 530 x 210 x 400 mm / 20.9 x 8.3 x 15.7 inch
Notes Grundig Tonband-Chassis TM340 de Luxe.
HiFi-Stereo-Chassis, Vierspur; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø: 18 cm; Frequenzbereich bei 19 cm/s: 40···18000 Hz.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
External source of data erb
Source of data Handbuch VDRG 1968/1969
