Drucktasten-Autosuper AS 53 UKW

Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1561694) Car Radio

Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1561695) Car Radio

Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 198290) Car Radio

Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1558947) Car Radio
Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1558906) Car Radio Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1558910) Car Radio
Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1558946) Car Radio
Use red slider bar for more.
Drucktasten-Autosuper AS 53 UKW; Grundig Radio- (ID = 1558906) Car Radio
Grundig Radio-: Drucktasten-Autosuper AS 53 UKW [Car Radio] ID = 1558906 933x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drucktasten-Autosuper AS 53 UKW, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Quelle: Grundig Prospekt zum UKW-Drucktasten-Autosuper.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953/1954 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: EC92 EF41 ECH81 EF41 EABC80 ECC82 EL42 EL42
Semiconductors (the count is only for transistors) 33/6E or. 33/12E
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (max.)
from Radiomuseum.org Model: Drucktasten-Autosuper AS 53 UKW - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 185 x 100 x 245 mm / 7.3 x 3.9 x 9.6 inch
Notes

Drucktasten-Automatik zur Festeinstellung von 3 UKW- oder Mittelwellen- und
1 Langwellensender, alle Knöpfe von vorn bedienbar, stufenlose Klangregelung,
Glasskala mit kHz-Eichung (6 = 600 kHz), blendungsfrei beleuchtet.

Schwundausgleich auf 3 Stufen wirkend, Gegentakt-Endstufe,
Anschlussmöglichkeit für 2. Lautsprecher.

Lieferbar in Universalausführung und Spezialausführungen für die Wagentypen DKW, Ford 12M und 12, Mercedes 220 und 170S, Opel Olympia 50 und 51, Opel Kapitän 50 und 51, Opel Olympia Rekord und Volkswagen 52.

Stromversorger: 180 x 130 x 70 mm, 2,8 kg
Lautsprecher: 200 x 170 x 100 mm, 1,5 kg

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1953/54
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 4
Mentioned in -- Original prospect or advert

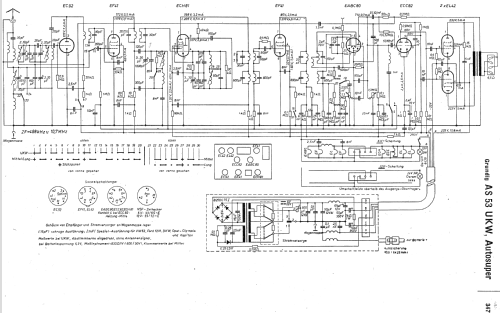

Literature/Schematics (1) -- Schematic
