• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1971/1972

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 240980

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PL95 PCH200 PCL805 PCF802 PL504 PY88 A61-120W

• Number of Transistors
• 12

• Semiconductors
• TAA550 TAA640 AF279 AF280 AF106 BC168 BF310 BF251 BF257 BF311 BC212 BC237 BC238 BF257 BB105 TD129 OA90 TD190 TV18 TD041 ESK1/10

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

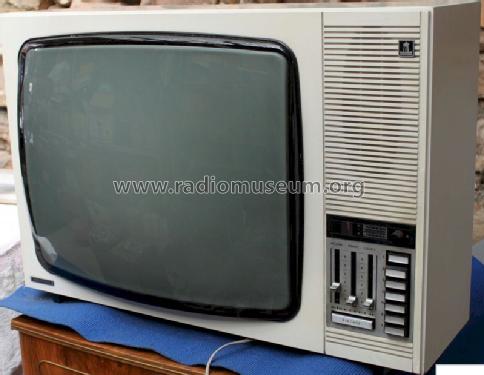

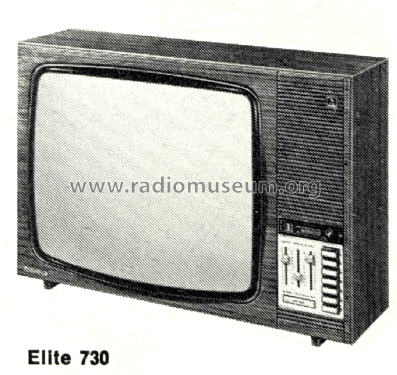

• Model: Lumophon Elite 730 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 495 x 375 mm / 28.3 x 19.5 x 14.8 inch

• Notes

• 61 cm s/w Fernsehempfänger. 7 Programm Tuner nach CCIR B/G für VHF/UHF.

  130 W Leistungsaufnahme.

  61 cm CRT mit 110°-Ablenkung. Gemischte Röhren-Transistor-Schaltung.

  ---

  Black and white television with VHF and UHF. 24-inch CRT with 110° deflection. Mixed tube-transistor circuit.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Mentioned in
• -- Original-techn. papers. (Original Grundig schematic)

• Literature/Schematics (1)
• Handbuch VDRG 1971/1972 (S. B12)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
