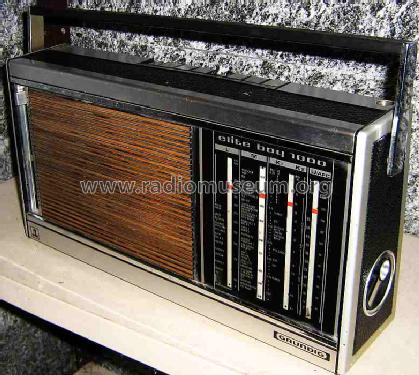

Elite-Boy 1000

Elite-Boy 1000; Grundig Radio- (ID = 393900) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393901) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393893) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393894) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393895) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393896) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393897) Radio

Elite-Boy 1000; Grundig Radio- (ID = 393899) Radio
Elite-Boy 1000; Grundig Radio- (ID = 430624) Radio Elite-Boy 1000; Grundig Radio- (ID = 309216) Radio
Elite-Boy 1000; Grundig Radio- (ID = 430625) Radio Elite-Boy 1000; Grundig Radio- (ID = 309215) Radio
Elite-Boy 1000; Grundig Radio- (ID = 485536) Radio Elite-Boy 1000; Grundig Radio- (ID = 492266) Radio
Elite-Boy 1000; Grundig Radio- (ID = 492267) Radio Elite-Boy 1000; Grundig Radio- (ID = 492268) Radio
Elite-Boy 1000; Grundig Radio- (ID = 492269) Radio Elite-Boy 1000; Grundig Radio- (ID = 492270) Radio
Use red slider bar for more.
Elite-Boy 1000; Grundig Radio- (ID = 430624) Radio
Grundig Radio-: Elite-Boy 1000 [Radio] ID = 430624 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elite-Boy 1000, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1972–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 13:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-127; 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Elite-Boy 1000 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 420 x 220 x 100 mm / 16.5 x 8.7 x 3.9 inch
Notes Ausgangsleistung bei Netzbetrieb: 4 W.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973
