• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119396

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Number of Transistors

• Semiconductors
• U2410PL

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

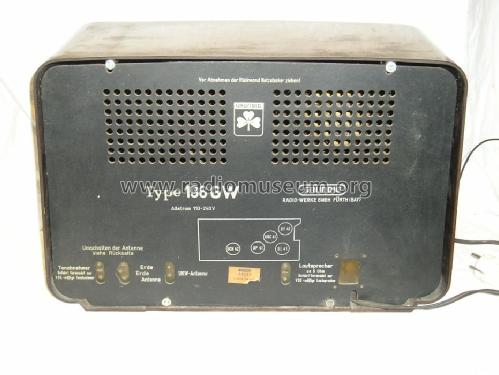

• Model: Erlangen GW 196GW - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Mentioned in
• -- Schematic

• Author
• Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
