Farbgenerator FG5 6231-1101

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 289283) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 289284) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 291254) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 291747) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 439852) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1796180) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 2271471) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 2271472) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 2271473) Equipment

Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 2271474) Equipment
Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1801799) Equipment Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1801800) Equipment
Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1791790) Equipment Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1801801) Equipment
Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 2225852) Equipment Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1380134) Equipment
Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1023467) Equipment Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1380131) Equipment
Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 233916) Equipment Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1563421) Equipment
Use red slider bar for more.
Farbgenerator FG5 6231-1101; Grundig Radio- (ID = 1801799) Equipment

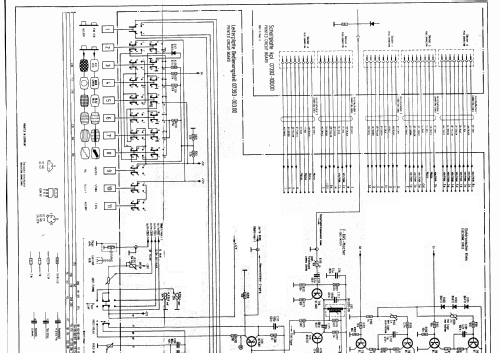

Grundig Radio-: Farbgenerator FG5 6231-1101 [Equipment] ID = 1801799 1400x755
Select picture or schematic to display from thumbnails on the right and click for download.
For model Farbgenerator FG5 6231-1101, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970–1975 Category: Service- or Lab Equipment
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Farbgenerator FG5 6231-1101 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 112 x 227 mm / 11.8 x 4.4 x 8.9 inch
Notes Testbild-Generator PAL auf 75 Ohm-Ausgang Video max 3,5 Vss und mit VHF K5-12 und UHF K21-60 Ausgang 60 Ohm max. 60 mV, Tonmodulation 1 kHz, 12 Grundmuster inbegriffen Kreis; mit Traggriff.
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Price in first year of sale 960.00 DM
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Urs Gloor. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6054 models, 5264 with images and 4077 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Grundig Radio-: Farbgenerator FG5 6231-1101
Threads: 1 | Posts: 1
Hits: 1531     Replies: 0
grundig: FG5; Farbgenerator
Heiko zur Mühlen
08.Apr.13
  1

In den Grundig Technischen Informationen Heft 2/1970, Seite 744 bis 759 gibt es eine ausführliche Dokumentation zu diesem Gerät.
