GDSM331

GDSM331; Grundig Radio- (ID = 223568) Microphone/PU GDSM331; Grundig Radio- (ID = 223625) Microphone/PU
GDSM331; Grundig Radio- (ID = 223626) Microphone/PU GDSM331; Grundig Radio- (ID = 223569) Microphone/PU
GDSM331; Grundig Radio- (ID = 583917) Microphone/PU GDSM331; Grundig Radio- (ID = 613159) Microphone/PU
GDSM331; Grundig Radio- (ID = 850984) Microphone/PU GDSM331; Grundig Radio- (ID = 850985) Microphone/PU
GDSM331; Grundig Radio- (ID = 912030) Microphone/PU GDSM331; Grundig Radio- (ID = 912033) Microphone/PU
Use red slider bar for more.
GDSM331; Grundig Radio- (ID = 223568) Microphone/PU
Grundig Radio-: GDSM331 [Microphone/PU] ID = 223568 500x339
Select picture or schematic to display from thumbnails on the right and click for download.
For model GDSM331, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966 ? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: GDSM331 - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Miscellaneous shapes - described under notes.

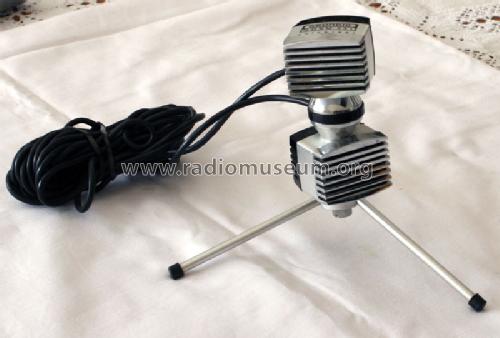

Notes Dynamisches Stereomikrofon, Nieren-Charakteristik, auf kleinem Dreibeinstativ, dreh- und schwenkbar, Kopffront silbern oder hochglanzverchromt, Rückseite schwarz. 5-poliger Diodenstecker, Impedanz je Kanal wahlweise 200 Ohm oder 11 kOhm (Pins 3+5 oder Pins 1+4, jeweils gegen Masse Pin 2)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Klaus Ortwein. See "Data change" for further contributors.
