Konzertgerät 4097 Stereo Nussbaum

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1964–1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 25645
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Konzertgerät 4097 Stereo [Nussbaum] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 650 x 310 x 230 mm / 25.6 x 12.2 x 9.1 inch
  • Notes
  • Stereo-Decoder 4 oder 5 nachrüstbar, Stereo-Anzeigeinstrument, Mono/Stereo-Umschaltung von Hand bzw. automatisch; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 5 W.
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 658.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Konzertgerät is part of the collections of the following members.

 Forum

Forum contributions about this model: Grundig Radio-: Konzertgerät 4097 Stereo

Threads: 2 | Posts: 8

Hello everybody:

I have the chance to buy this radio, Grundig 4097 Stereo. It would be my first Grundig radio with FM.

Unfortunatelly it does not come with its Grundig Stereo-Decoder 4.

I will really appreciate your information about if it is possible to find this decoder or not, and tell me where I can look for one, please.

Also,  I was reading on RMorg about other model, the Grundig Stereo-Decoder 6. Would be adequate for this radio?

Any information, options or hints about this situation, a good radio without its decoder, in order I can take a good decision, will be very well welcome.

Thank you very much in advanced an kindest regards,

José



José Bustos, 03.Aug.14

Weitere Posts (6) zu diesem Thema.

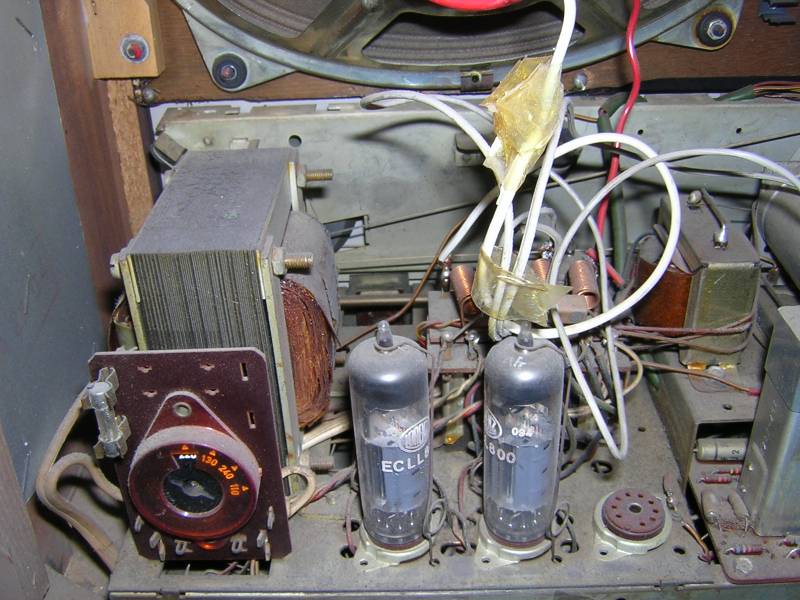

Sono alla ricerca dello schema Grundig per il Modello 4097 Stereo,

in particolare, la versione con due finali ECLL800, e lo schemario del decoder Stereo.

Grazie Mille


Mario

Attachments

Mario Viacava, 14.Jun.10

Weitere Posts (2) zu diesem Thema.
