• Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26160
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

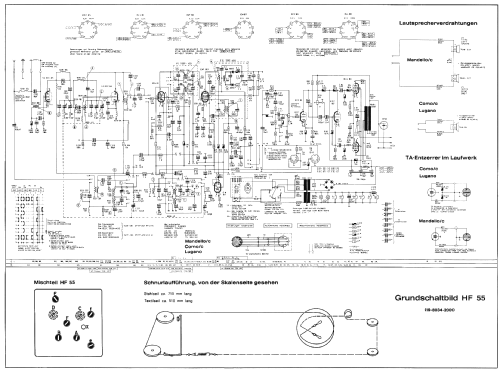

Click on the schematic thumbnail to request the schematic as a free document.

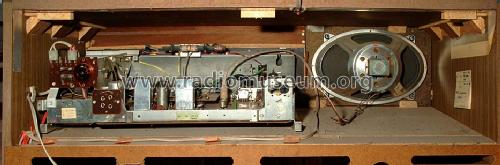

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 7 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Lugano Ch= HF55 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 860 x 800 x 370 mm / 33.9 x 31.5 x 14.6 inch
  • Notes
  • Dioden: 2× AA113.
    Rundfunk-Chassis = HF55;
    Phono-Chassis = Philips AG1025.
  • Net weight (2.2 lb = 1 kg)
  • 35 kg / 77 lb 1.5 oz (77.093 lb)
  • External source of data
  • erb

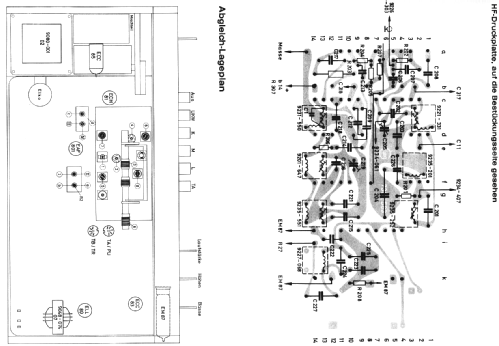

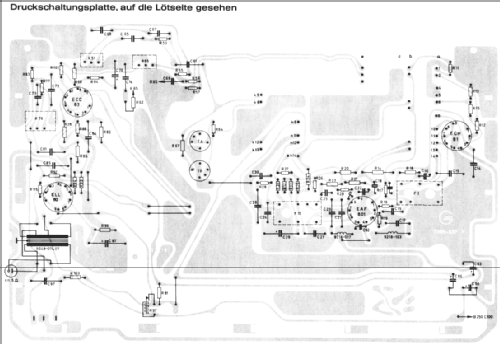

  • Literature/Schematics (1)
  • -- Original-techn. papers.
