Majestic TK5

Majestic TK5 ; Grundig Radio- (ID = 808070) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808071) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808072) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808073) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808074) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808075) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808076) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808077) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808078) R-Player

Majestic TK5 ; Grundig Radio- (ID = 808079) R-Player
Majestic TK5 ; Grundig Radio- (ID = 808068) R-Player
Use red slider bar for more.
Majestic TK5 ; Grundig Radio- (ID = 808068) R-Player
Grundig Radio-: Majestic TK5 [R-Player] ID = 808068 650x740
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic TK5, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Sams Photofact Folders reference picture.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1958 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 EL42 ECC81 EL42 EM85
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 165; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Majestic TK5 - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Tablemodel, with any shape - general.
Notes Model TK5 operates from 50 cycle, 110, 125, 145, 165 and 220 volts only.
Supplied by:
Majestic International Sales Corporation, 743 West La Salle Street, Chicago 10, Illinois.

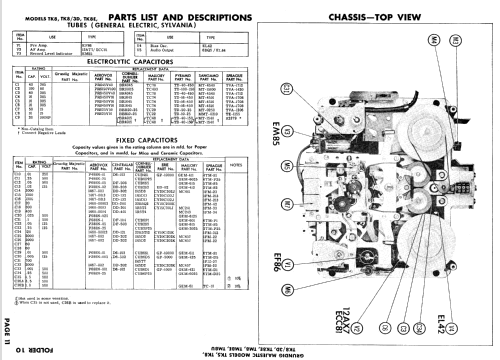

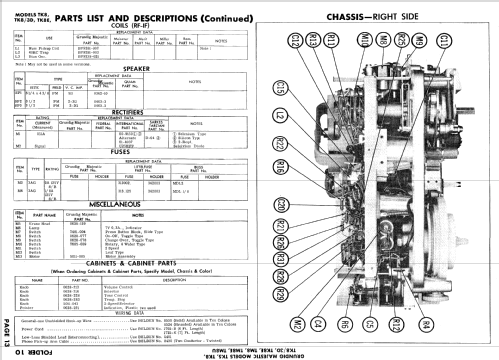

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Folder 10)

Model page created by Egon Penker. See "Data change" for further contributors.
