Millivoltmeter MV5

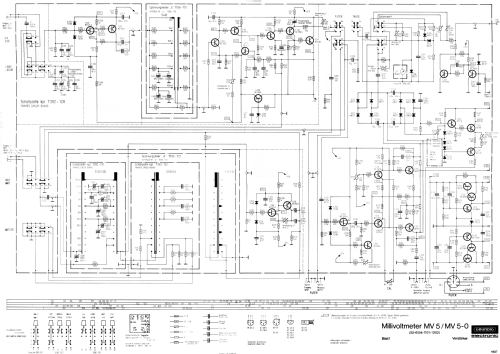

Millivoltmeter MV5; Grundig Radio- (ID = 237664) Equipment

Millivoltmeter MV5; Grundig Radio- (ID = 237665) Equipment

Millivoltmeter MV5; Grundig Radio- (ID = 237666) Equipment

Millivoltmeter MV5; Grundig Radio- (ID = 237667) Equipment
Millivoltmeter MV5; Grundig Radio- (ID = 1986019) Equipment Millivoltmeter MV5; Grundig Radio- (ID = 237663) Equipment
Millivoltmeter MV5; Grundig Radio- (ID = 356043) Equipment Millivoltmeter MV5; Grundig Radio- (ID = 356045) Equipment
Use red slider bar for more.
Millivoltmeter MV5; Grundig Radio- (ID = 1986019) Equipment
Grundig Radio-: Millivoltmeter MV5 [Equipment] ID = 1986019 1400x961
Select picture or schematic to display from thumbnails on the right and click for download.
For model Millivoltmeter MV5, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 28:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Millivoltmeter MV5 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 218 x 176 mm / 11.8 x 8.6 x 6.9 inch
Notes

From 1 mV to 300 V. Audio voltmeter, Volt and dB Audio wattmeter function 10/100 W 16-8-4 W.
With KM5 connected, can be used for klirrfaktor, noise and other measurements.

Beschreibung vorhanden bei Millivoltmeter mit Oszilloskop MV5-O.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 1'232.00 DM
Literature/Schematics (1) D.E. Ravalico, Strumenti per radiotecnici, XVI Edizione, 1979

Model page created by Alessandro De Poi. See "Data change" for further contributors.
