Monomat SE P1600SEa

Monomat SE P1600SEa; Grundig Radio- (ID = 444017) Television

Monomat SE P1600SEa; Grundig Radio- (ID = 444018) Television
Monomat SE P1600SEa; Grundig Radio- (ID = 271751) Television Monomat SE P1600SEa; Grundig Radio- (ID = 271758) Television
Monomat SE P1600SEa; Grundig Radio- (ID = 1262183) Television
Use red slider bar for more.
Monomat SE P1600SEa; Grundig Radio- (ID = 271751) Television
Grundig Radio-: Monomat SE P1600SEa [Television] ID = 271751 595x489
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monomat SE P1600SEa, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Sehr guter Erhaltungszustand

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1967/1968 Category: Television Receiver (TV) or Monitor
Valves / Tubes 9: EF183 PFL200 PCH200 PL95 PCL85 PY88 PL504 DY802 400AEB4 or A41-10W
Semiconductors (the count is only for transistors) 7: AF239 AF240 AF106 BF173 BF173 AF121 BC108 BA141 BA142 9723 OA90 M40C4 OA81 AA113 OA91 OA85 OY1011
Main principle Superhet with RF-stage; ZF/IF 38900/5500 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Monomat SE P1600SEa - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 385 x 290 mm / 18.5 x 15.2 x 11.4 inch
Notes

Einknopf-6-Programm-Schnellwahlautomatik Monomat SE für 6 VHF- oder UHF-Programme, Linearskala für Kanal- und Bereichsanzeige, beleuchtete Programmanzeige.

Herkunft der Modellbezeichnung MONOMAT: Verwendung eines "Einknopf-Programmwählers" (Bezeichnung: Grundig).

Jeder Diodentyp ist einmal gelistet.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)

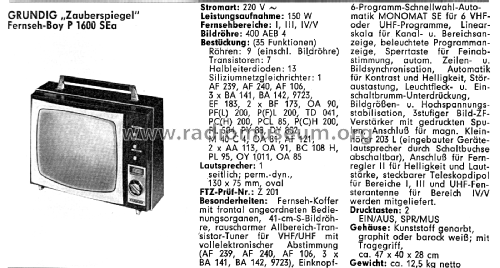

Source of data Handbuch VDRG 1967/1968
Mentioned in Handbuch Rundfunk Fernsehen Phono (RFP) 1967/68, S.696

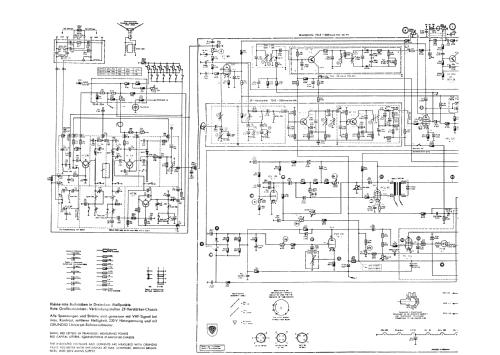

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Arndt Markus Hettche. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
