• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24458

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84a ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: MS65 [Rüster] - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1440 x 810 x 400 mm / 56.7 x 31.9 x 15.7 inch

• Notes

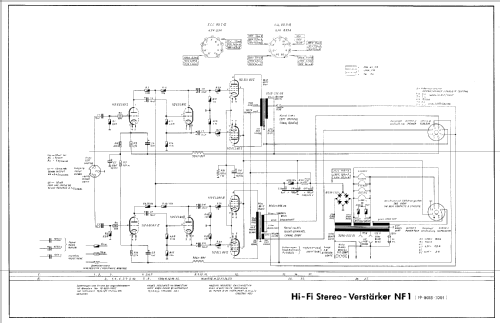

• Rundfunk-Chassis = HF2/NF1; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W; Raumhall-Einrichtung Phonomascope gegen Mehrpreis (135,- DM);
  Phono-Chassis = Elac PW16.

• Net weight (2.2 lb = 1 kg)
• 55 kg / 121 lb 2.3 oz (121.145 lb)

• Price in first year of sale
• 1,392.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
