Prima-Boy 203

Prima-Boy 203; Grundig Radio- (ID = 159010) Radio

Prima-Boy 203; Grundig Radio- (ID = 159011) Radio

Prima-Boy 203; Grundig Radio- (ID = 159012) Radio

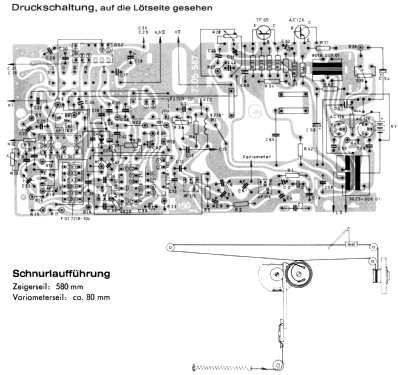

Prima-Boy 203; Grundig Radio- (ID = 1605735) Radio
Prima-Boy 203; Grundig Radio- (ID = 284) Radio Prima-Boy 203; Grundig Radio- (ID = 341484) Radio
Prima-Boy 203; Grundig Radio- (ID = 1098008) Radio Prima-Boy 203; Grundig Radio- (ID = 1098009) Radio
Use red slider bar for more.

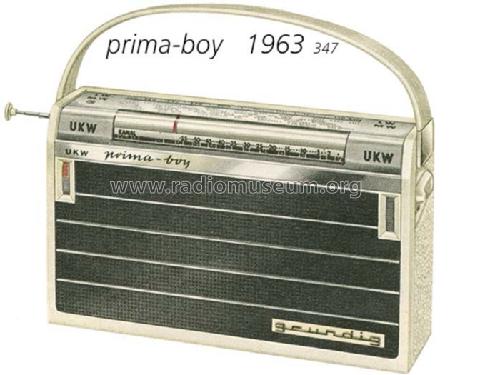

Prima-Boy 203; Grundig Radio- (ID = 284) Radio
Grundig Radio-: Prima-Boy 203 [Radio] ID = 284 671x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prima-Boy 203, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 TF65 AC126 AC126 AC126
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Prima-Boy 203 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 105 x 50 mm / 7.1 x 4.1 x 2 inch
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 228.00 DM
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
