Prima Boy 75L

Prima Boy 75L; Grundig Radio- (ID = 1514542) Radio

Prima Boy 75L; Grundig Radio- (ID = 1514543) Radio
Prima Boy 75L; Grundig Radio- (ID = 1512938) Radio Prima Boy 75L; Grundig Radio- (ID = 1512939) Radio
Prima Boy 75L; Grundig Radio- (ID = 2281995) Radio Prima Boy 75L; Grundig Radio- (ID = 2281996) Radio
Prima Boy 75L; Grundig Radio- (ID = 2281997) Radio
Use red slider bar for more.

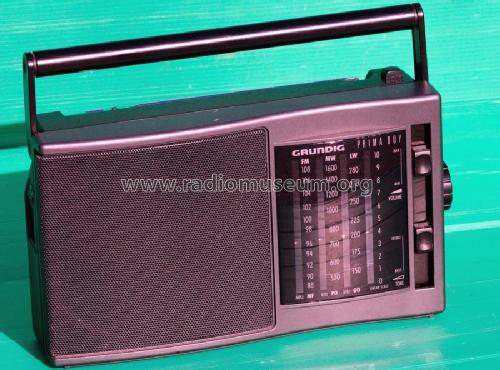

Prima Boy 75L; Grundig Radio- (ID = 1512938) Radio
Grundig Radio-: Prima Boy 75L [Radio] ID = 1512938 900x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prima Boy 75L, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1992 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. CXA1019M 1N4002
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: Prima Boy 75L - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 135 x 60 mm / 9.4 x 5.3 x 2.4 inch
Notes

Grundig Prima Boy 75L is a "single chip" superheterodyne receiver.
See also Grundig Prima Boy 75K with wave bands FM, SW and MW.

Made in Malaysia.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

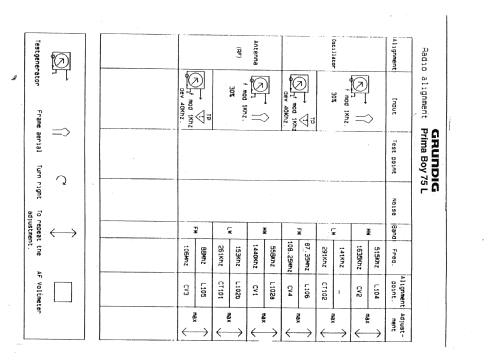

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
