R7500; Grundig Radio- (ID = 339982) Radio

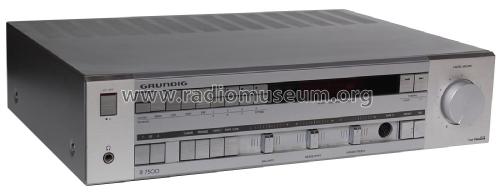

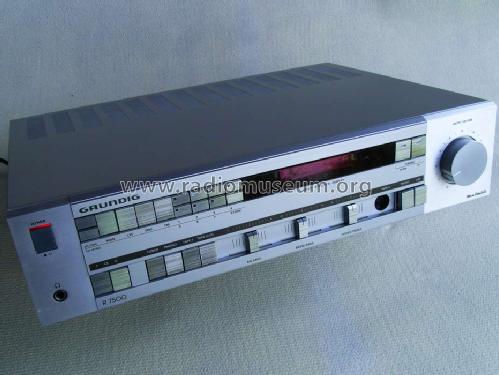

Grundig Radio-: R7500 [Radio] ID = 339982 933x700

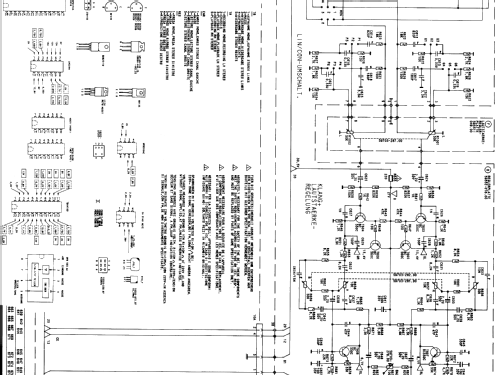

Select picture or schematic to display from thumbnails on the right and click for download.
For model R7500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. BC548 BC550 BC560 BC337 BC327 BC558 BC328 BF240 2SK193 GP140 GP145 BD825 BD135 MC78M05CT MC1310 TDA4100 LM324 MC14001 µPB553AC HEF4042BP SN74LS42 µPD1703C CA3140
Main principle Superheterodyne (common); ZF/IF 450/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: R7500 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 110 x 330 mm / 17.7 x 4.3 x 13 inch
Notes
  • Stereoreceiver
  • synthetische Frequenzaufbereitung (PLL)
  • digitale Frequenzanzeige, für UKW auch Kanalanzeige
  • 2 x 50 Watt Ausgangsleistung

Jeder Halbleitertyp ist nur einmal gelistet.

Model page created by Dieter Barkawitz. See "Data change" for further contributors.
