Receiver Chassis HF45WE

Receiver Chassis HF45WE; Grundig Radio- (ID = 2246366) Radio
Use red slider bar for more.
Receiver Chassis HF45WE; Grundig Radio- (ID = 2246366) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EAF801 ECC83 ECLL800 EM87 ECLL800
Semiconductors (the count is only for transistors) B250C135
Main principle Superheterodyne (common); ZF/IF 460 kHz; Export model
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 50/60 Hz: 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Receiver Chassis HF45WE - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Notes

Receiver chassis HF45WE is a chassis for export. It has 4 wave bands:

  • MW: 510 - 1620 kHz
  • SW1: 2.0 - 6.0 MHz
  • SW2: 5.9 - 15 MHz
  • SW3: 14.8 - 26.5 MHz

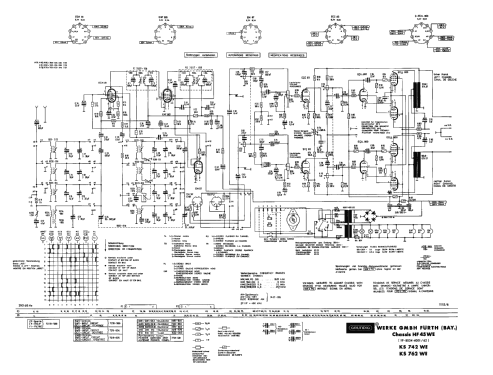

Mentioned in -- Schematic

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
