Record TK919

Record TK919; Grundig Radio- (ID = 13490) R-Player

Record TK919; Grundig Radio- (ID = 13491) R-Player

Record TK919; Grundig Radio- (ID = 628374) R-Player

Record TK919; Grundig Radio- (ID = 2078544) R-Player
Record TK919; Grundig Radio- (ID = 36558) R-Player Record TK919; Grundig Radio- (ID = 36559) R-Player
Record TK919; Grundig Radio- (ID = 762252) R-Player Record TK919; Grundig Radio- (ID = 2008018) R-Player
Record TK919; Grundig Radio- (ID = 2078541) R-Player
Use red slider bar for more.
Record TK919; Grundig Radio- (ID = 36558) R-Player

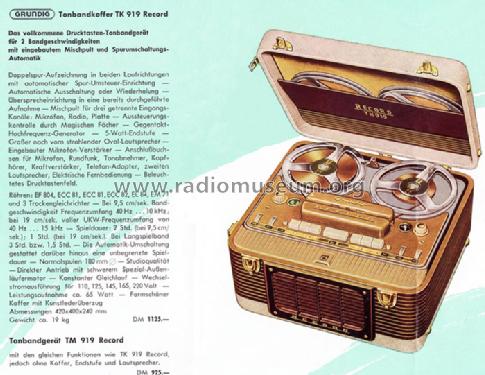

Grundig Radio-: Record TK919 [R-Player] ID = 36558 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Record TK919, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: EF804 ECC81 ECC81 ECC82 EM71 EL84
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 165; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Record TK919 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 400 x 240 mm / 16.5 x 15.7 x 9.4 inch
Notes Zweispur; Bandgeschwindigkeiten: 9,5/19 cm/s.; Spulen-Ø 18 cm; Autoreverse.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 1'125.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55
