RR 1500

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1986
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 138249
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

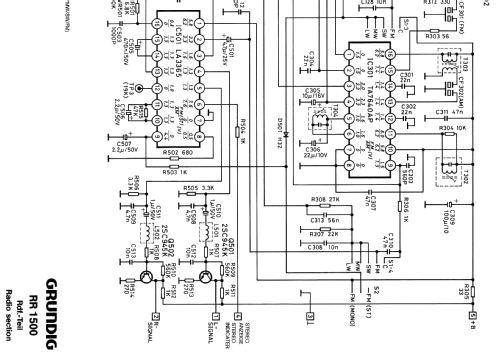

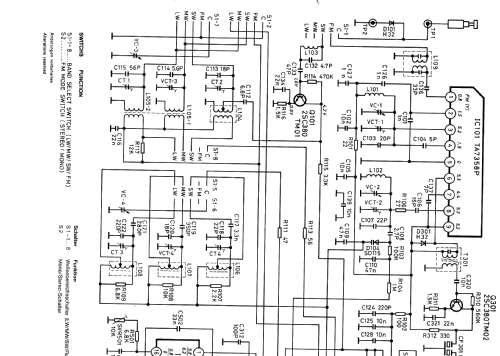

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 16 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RR 1500 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 500 x 165 x 110 mm / 19.7 x 6.5 x 4.3 inch
  • Notes

  • Musikleistung 2x 8 Watt. Mit Doppel-Cassettendeck.

    FM stereo radio with AM (LW, MW and SW), FM mode stereo or mono. Stereo cassette recorder/player. Normal/high speed dubbing. Tape A only playback, tape B record/playback. Input/output for external microphone and tape. Two internal electret microphones.
    Output for earphones. Tone control. Low and mid audio frequencies with two loudspeakers of 9 cm diameter. High frequencies with two condenser speakers of 20 mm diameter.

  • Net weight (2.2 lb = 1 kg)
  • 3.150 kg / 6 lb 15 oz (6.938 lb)
  • Mentioned in
  • Original Grundig Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
