5 Band Radio Recorder RR 280; Grundig Radio- (ID = 495062) Radio
Grundig Radio-: 5 Band Radio Recorder RR 280 [Radio] ID = 495062 759x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5 Band Radio Recorder RR 280, Grundig (Radio-Vertrieb, RVF, Radiowerke):

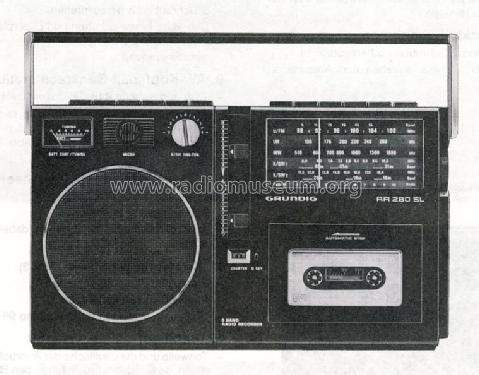

Bild aus Original Grundig Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / C: 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5 Band Radio Recorder RR 280 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 175 x 65 mm / 12.2 x 6.9 x 2.6 inch
Notes

3 ICs: AN7218, TBA810, BA333.

Siehe auch baugleiches Modell RKM 200, vertrieben unter der Marke Minverva.

Net weight (2.2 lb = 1 kg) 2.070 kg / 4 lb 9 oz (4.559 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
