Solo-Boy 201

Solo-Boy 201; Grundig Radio- (ID = 705926) Radio

Solo-Boy 201; Grundig Radio- (ID = 488468) Radio

Solo-Boy 201; Grundig Radio- (ID = 1528913) Radio

Solo-Boy 201; Grundig Radio- (ID = 705927) Radio

Solo-Boy 201; Grundig Radio- (ID = 705928) Radio

Solo-Boy 201; Grundig Radio- (ID = 1528910) Radio

Solo-Boy 201; Grundig Radio- (ID = 1528911) Radio
Solo-Boy 201; Grundig Radio- (ID = 2569805) Radio Solo-Boy 201; Grundig Radio- (ID = 1530809) Radio
Solo-Boy 201; Grundig Radio- (ID = 1176461) Radio Solo-Boy 201; Grundig Radio- (ID = 96577) Radio
Solo-Boy 201; Grundig Radio- (ID = 731987) Radio Solo-Boy 201; Grundig Radio- (ID = 26206) Radio
Solo-Boy 201; Grundig Radio- (ID = 520438) Radio Solo-Boy 201; Grundig Radio- (ID = 731989) Radio
Solo-Boy 201; Grundig Radio- (ID = 160736) Radio Solo-Boy 201; Grundig Radio- (ID = 1146868) Radio
Use red slider bar for more.
Solo-Boy 201; Grundig Radio- (ID = 2569805) Radio
Grundig Radio-: Solo-Boy 201 [Radio] ID = 2569805 1400x1029
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solo-Boy 201, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ausführung: weiß

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA175 2SA175 2SA175 2SB54 2SB56 2SB56 1N60 1S50
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details

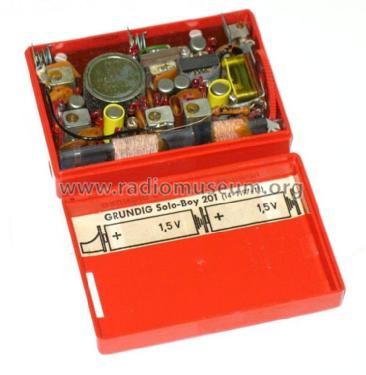

Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: Solo-Boy 201 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 78 x 54 x 25 mm / 3.1 x 2.1 x 1 inch
Notes

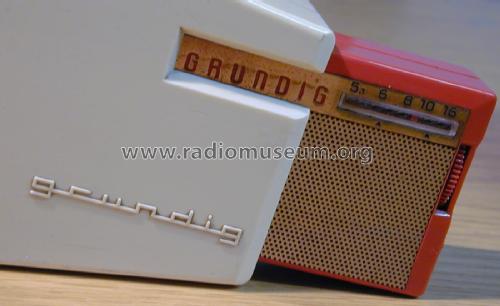

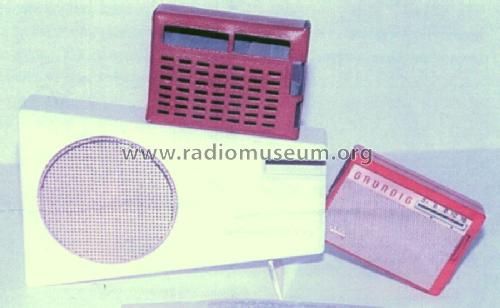

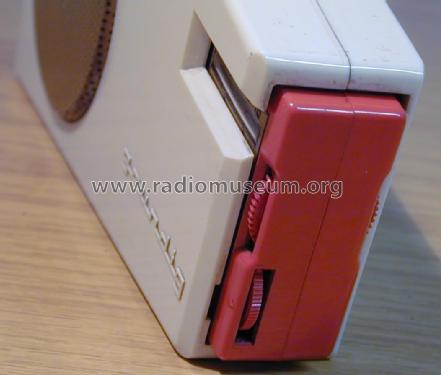

Das Gerät konnte in eine trapezförmige Heimlautsprecherbox zwecks besserer Wiedergabe eingeschoben werden.

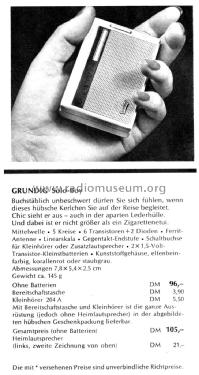

Preise:
Gerät ohne Batterien 96DM,
Bereitsschaftstasche 4,20DM,
Heimlautsprecher 24DM,
Radio + Tasche + Kleinkopfhörer (ohne Heimlautsprecher) in Geschenkpackung 105DM.
Batterien: Type "Lady", z.B. Pertrix Nr.245 o.ä.



Net weight (2.2 lb = 1 kg) 0.145 kg / 0 lb 5.1 oz (0.319 lb)
Price in first year of sale 96.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (6/1961, S. 135)
