• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1964/1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182224

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

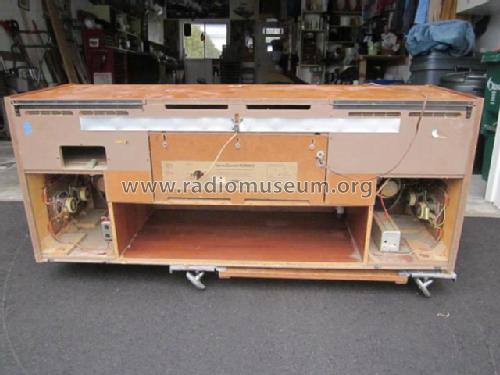

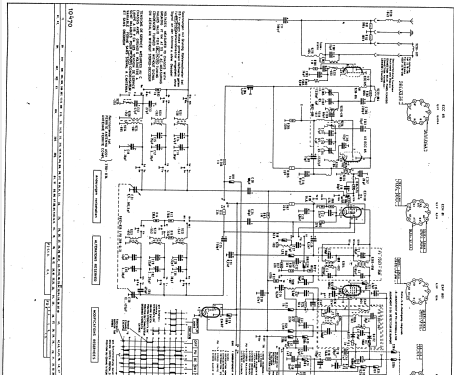

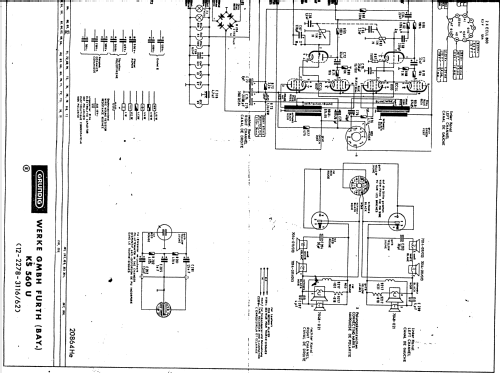

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM87 ECLL800 ECLL800

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 14 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereogram KS560U - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1350 x 8100 x 4500 mm / 53.1 x 318.9 x 177.2 inch

• Notes

• The Grundig Stereogram consists of a highly efficient Radio Tuner connected to a high fidelity Stereo/Mono Amplifier.
  Together with the fitted Stereo Record Changer an outstanding stereo performance is obtained. A space is provided to install a Stereo Tape Recorder.

  The Grundig Stereo Decoder 4U or Stereo Decoder 5U may be used to generate FM Stereo.

• Net weight (2.2 lb = 1 kg)
• 62 kg / 136 lb 9 oz (136.564 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
