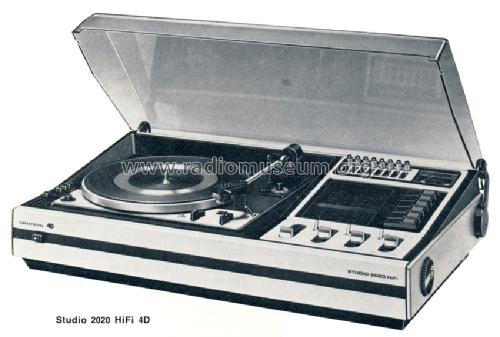

Studio 2020 HiFi (Ch= 1226)

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1976/1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131257

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

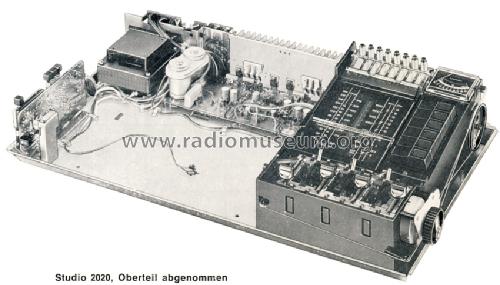

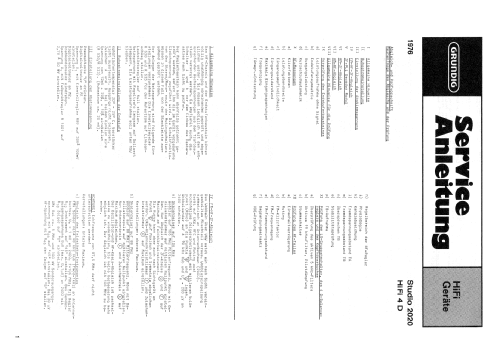

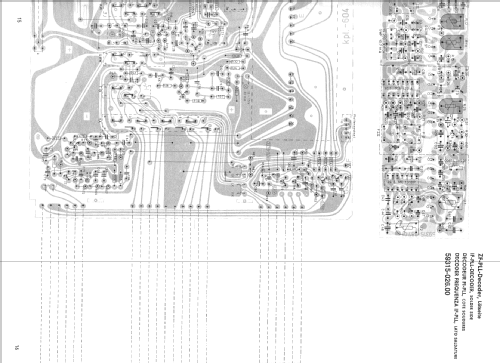

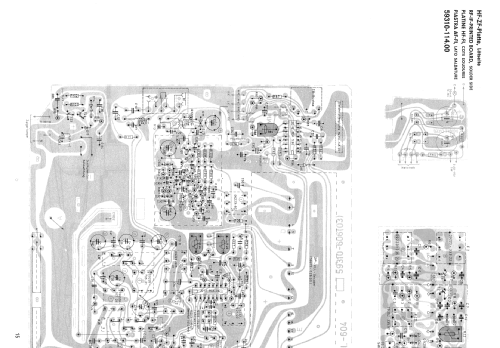

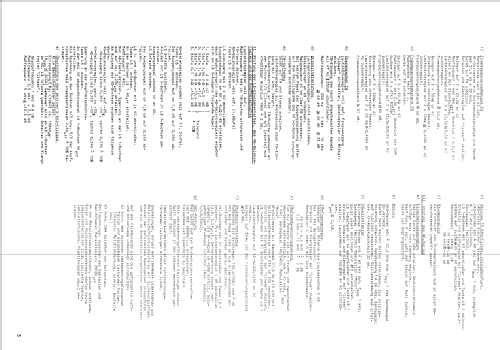

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 58

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer); Hi-Fi equipment

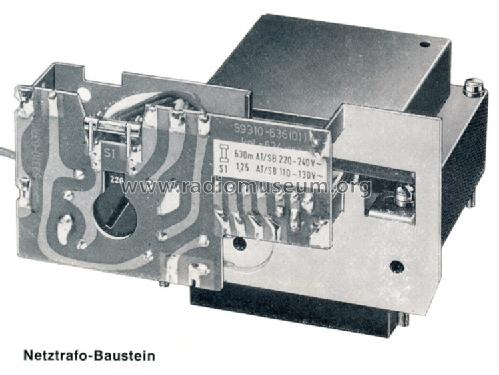

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

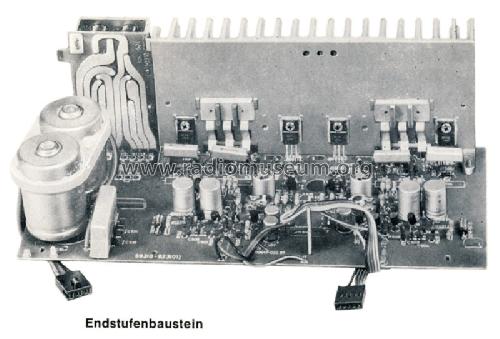

• Power out
• 70 W (unknown quality)

• from Radiomuseum.org
• Model: Studio 2020 HiFi - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 180 x 380 mm / 26.4 x 7.1 x 15 inch

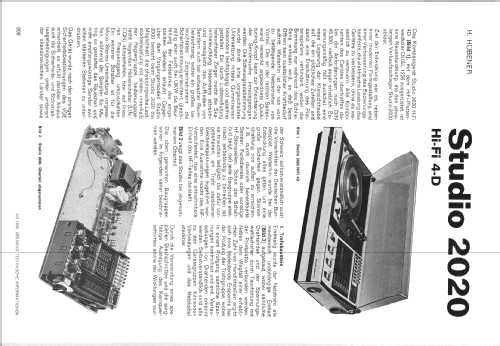

• Notes

• 2 Ausführungen: metallic und schwarz.
  Mit 4 ICs.

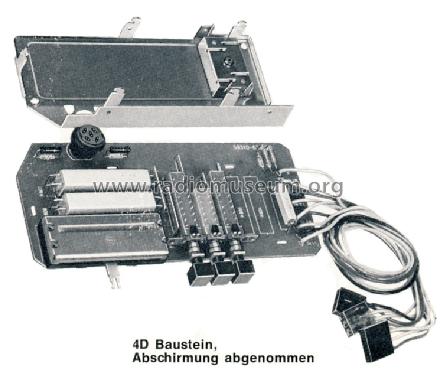

  Kompaktstudio für Stereo, 2-Raum-Stereo und 4D-Stereo-Raumklang.
  Ausgangsleistung: 2× 35 W (Musik) bei Stereo bzw. 4× 14 W (Musik) bei Stereo in 2 getrennten Räumen;
  Phono-Chassis = Dual 1226 mit Magnetsystem Shure M75D.

  Fully automatic record changer: auto-start & auto-stop.
  Start position determined by the speed, 33 or 45 rpm.
  At 33 rpm, the record player will start at the 12" (normal LP) position.
  At 45 rpm, the record player wills tart at the 7" (single) position.

  Capable of playing and changing 6 records in a row.
  Adjustable stylus pressure, balance, pitch & anti-skating.

• Source of data
• Handbuch VDRG 1976/1977

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
