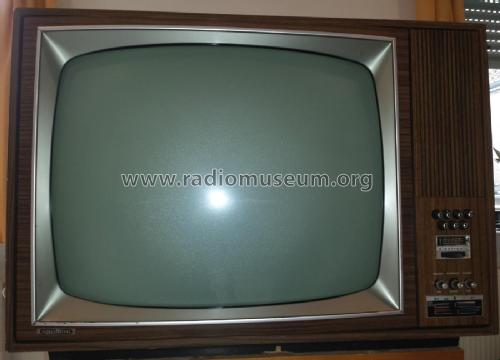

T1100 Color
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1968 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 155254
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Q: Grundig, Service-Unterlagen
Funk-Technik 17/69/650
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- EF183 PL802 EF184 PCH200 PL95 EF184 EF184 EF184 PC92 PL805 PCF802 PL504 PY88 PL509 PY500 ECC82 GY501 A63-11X
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: T1100 Color - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Notes
- VHF/UHF mit "Olympiaprogrammtasten".
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Holger Ortmann. See "Data change" for further contributors.
