Taschen-Boy 202

Taschen-Boy 202; Grundig Radio- (ID = 113285) Radio

Taschen-Boy 202; Grundig Radio- (ID = 113287) Radio

Taschen-Boy 202; Grundig Radio- (ID = 113288) Radio

Taschen-Boy 202; Grundig Radio- (ID = 113289) Radio
Taschen-Boy 202; Grundig Radio- (ID = 27143) Radio Taschen-Boy 202; Grundig Radio- (ID = 1098004) Radio
Taschen-Boy 202; Grundig Radio- (ID = 1098005) Radio
Use red slider bar for more.
Taschen-Boy 202; Grundig Radio- (ID = 27143) Radio

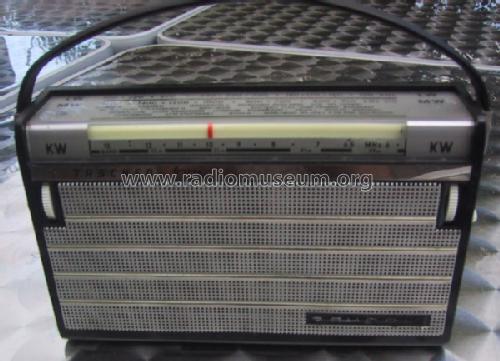

Grundig Radio-: Taschen-Boy 202 [Radio] ID = 27143 600x434
Select picture or schematic to display from thumbnails on the right and click for download.
For model Taschen-Boy 202, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF116 AF117 AF117 OC71 OC71 OC74 OC74 1N60
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Taschen-Boy 202 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 105 x 50 mm / 7.1 x 4.1 x 2 inch
Notes Grundig Taschen-Boy 202 wurde in den Farben elfenbein, hagebuttenrot, weiß/graphit oder schwarz/silber angeboten.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 159.00 DM
Source of data Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb
