Taschen-Boy 203

Taschen-Boy 203; Grundig Radio- (ID = 27028) Radio
Taschen-Boy 203; Grundig Radio- (ID = 1726722) Radio Taschen-Boy 203; Grundig Radio- (ID = 283) Radio
Taschen-Boy 203; Grundig Radio- (ID = 1098006) Radio Taschen-Boy 203; Grundig Radio- (ID = 1098007) Radio
Taschen-Boy 203; Grundig Radio- (ID = 1726717) Radio Taschen-Boy 203; Grundig Radio- (ID = 1726718) Radio
Taschen-Boy 203; Grundig Radio- (ID = 1726734) Radio Taschen-Boy 203; Grundig Radio- (ID = 1726735) Radio
Taschen-Boy 203; Grundig Radio- (ID = 1726925) Radio Taschen-Boy 203; Grundig Radio- (ID = 1726927) Radio
Use red slider bar for more.
Taschen-Boy 203; Grundig Radio- (ID = 1726722) Radio
Grundig Radio-: Taschen-Boy 203 [Radio] ID = 1726722 930x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model Taschen-Boy 203, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF116 AF117 AF117 TF65 AC126 AC126 AC126 1N60
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Taschen-Boy 203 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 105 x 50 mm / 7.1 x 4.1 x 2 inch
Notes

Selbstschwingende Mischstufe mit Transistor AF116.

Siehe auch Taschen-Boy 203E mit separater Misch- und Oszillatorstufe und Wellenbereiche 2x KW und MW.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 175.00 DM
Collectors' prices
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
Literature/Schematics (1) -- Schematic

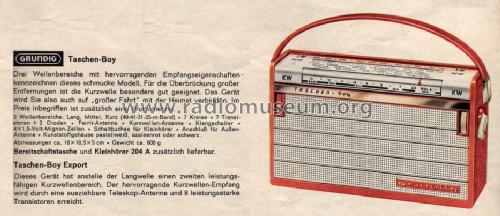

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
