For model Teddy-Transistor-Boy II/59, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: OC171 OC170 OC170 OC170 OC71 OC71 OC74 OC74 OA70 OA172 OA172 E25C5 E62,5C5
Main principle Super-Heterodyne (Super in general); ZF/IF 460/6700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / D: 6 × 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Teddy-Transistor-Boy II/59 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 311 x 205 x 130 mm / 12.2 x 8.1 x 5.1 inch
Notes

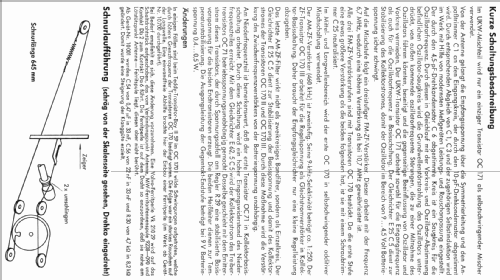

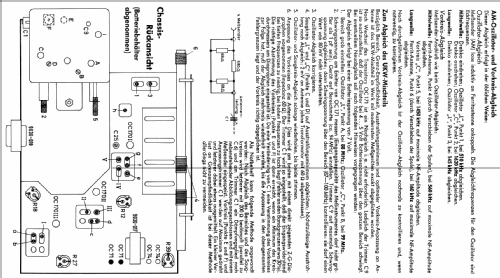

Für UKW: Selbstschwingende Mischstufe, keine Vorstufe. Mitlaufender (abgestimmter) Saugkreis der die Abstrahlung der Oszillator-Grundwelle über die Antennen minimiert.

Siehe auch die Exportversion Teddy Boy II/59E für die USA mit KW statt LW-Bereich.

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 279.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 1, Ernst Erb
Mentioned in -- Original-techn. papers.
