TK320; Grundig Radio- (ID = 140516) R-Player

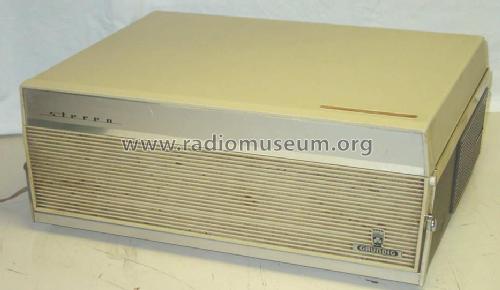

Grundig Radio-: TK320 [R-Player] ID = 140516 822x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model TK320, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966/1967 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: EF86 EF86 ECC81 ECC81 EM84 EL95
Semiconductors (the count is only for transistors) 14: BFY39 BSY76 AC127 AC152 AD150
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 24 W (unknown quality)
from Radiomuseum.org Model: TK320 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 210 x 400 mm / 20.9 x 8.3 x 15.7 inch
Notes Dioden: DZ62, 2× M3, 2× Z1,5.
Zweispur-Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø 18 cm. Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 12 W.
Einige Transistortypen mehrfach vorhanden.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
