TR20

TR20; Grundig Radio- (ID = 67027) R-Player

TR20; Grundig Radio- (ID = 67028) R-Player

TR20; Grundig Radio- (ID = 67029) R-Player

TR20; Grundig Radio- (ID = 67030) R-Player

TR20; Grundig Radio- (ID = 67031) R-Player

TR20; Grundig Radio- (ID = 67032) R-Player

TR20; Grundig Radio- (ID = 67033) R-Player

TR20; Grundig Radio- (ID = 67034) R-Player

TR20; Grundig Radio- (ID = 67035) R-Player

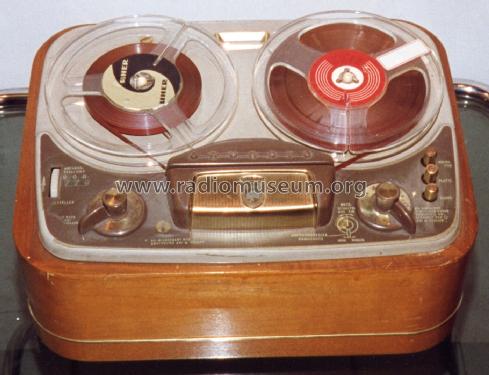

TR20; Grundig Radio- (ID = 288351) R-Player TR20; Grundig Radio- (ID = 474573) R-Player
TR20; Grundig Radio- (ID = 1968412) R-Player
Use red slider bar for more.
TR20; Grundig Radio- (ID = 288351) R-Player

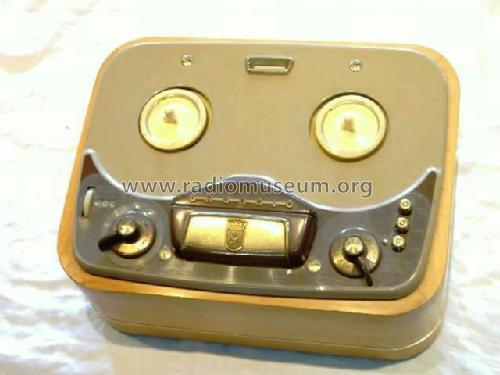

Grundig Radio-: TR20 [R-Player] ID = 288351 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR20, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1958–1960 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 ECC81 EL95 EM84
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TR20 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 320 x 180 mm / 13.8 x 12.6 x 7.1 inch
Notes Technische Daten wie TM20, jedoch mit Edelholzgehäuse.
Als Tischgerät oder zum Einsetzen in Musikschränke verwendbar. Chassisabmessungen: 310x120x220mm.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 365.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
