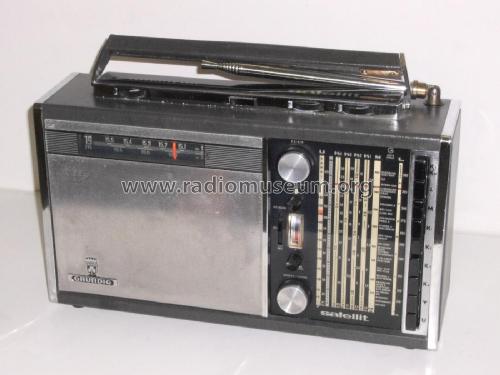

Transistor 5000a

Transistor 5000a; Grundig Radio- (ID = 1935764) Radio

Transistor 5000a; Grundig Radio- (ID = 1935767) Radio

Transistor 5000a; Grundig Radio- (ID = 1935769) Radio

Transistor 5000a; Grundig Radio- (ID = 1935770) Radio

Transistor 5000a; Grundig Radio- (ID = 1935773) Radio

Transistor 5000a; Grundig Radio- (ID = 1935776) Radio
Transistor 5000a; Grundig Radio- (ID = 471893) Radio Transistor 5000a; Grundig Radio- (ID = 471894) Radio
Transistor 5000a; Grundig Radio- (ID = 1270038) Radio Transistor 5000a; Grundig Radio- (ID = 1270039) Radio
Transistor 5000a; Grundig Radio- (ID = 1270040) Radio Transistor 5000a; Grundig Radio- (ID = 1270041) Radio
Transistor 5000a; Grundig Radio- (ID = 1270042) Radio Transistor 5000a; Grundig Radio- (ID = 1270043) Radio
Transistor 5000a; Grundig Radio- (ID = 1270044) Radio Transistor 5000a; Grundig Radio- (ID = 1952077) Radio
Use red slider bar for more.
Transistor 5000a; Grundig Radio- (ID = 471893) Radio
Grundig Radio-: Transistor 5000a [Radio] ID = 471893 882x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 5000a, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Export variant to non-german speaking countries: dial with S M L band designations, no station's names mentionned.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 9 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Transistor 5000a - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 420 x 250 x 120 mm / 16.5 x 9.8 x 4.7 inch
Notes

Exportversion des Satellit 205a.

Das Modell Transistor 5000a hat zwei Rückwandschrauben und zwei Kreuzschlitzschrauben an den Seiten der Trommelskala.

Erkennungsmerkmale des Vorgängermodelles Grundig Transistor 5000: Eine mittig angebrachte Rückwandschraube, Skalenfenster der Trommelskala noch ohne seitliche Schrauben.

Bitte beim Hochladen von Bildern das richtige Modell auswählen!

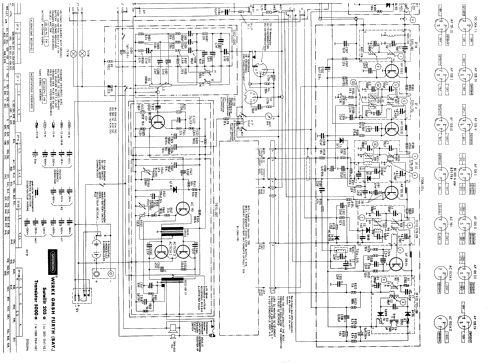

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
