Transistor C 340

Transistor C 340; Grundig Radio- (ID = 1563694) Radio Transistor C 340; Grundig Radio- (ID = 1563695) Radio
Transistor C 340; Grundig Radio- (ID = 1563696) Radio Transistor C 340; Grundig Radio- (ID = 1563697) Radio
Transistor C 340; Grundig Radio- (ID = 1563698) Radio Transistor C 340; Grundig Radio- (ID = 1563699) Radio

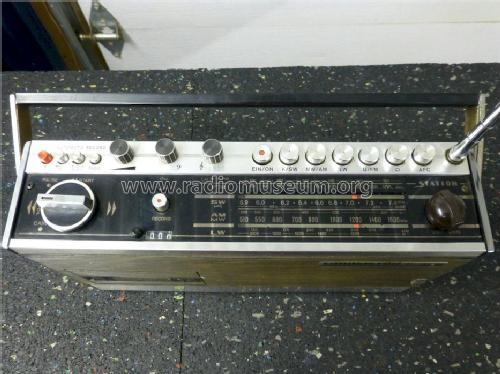

Transistor C 340; Grundig Radio- (ID = 1563700) Radio Transistor C 340; Grundig Radio- (ID = 1563701) Radio
Use red slider bar for more.
Transistor C 340; Grundig Radio- (ID = 1563694) Radio
Grundig Radio-: Transistor C 340 [Radio] ID = 1563694 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor C 340, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ebay auction by user onkyo30 130993312282

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); Export model
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 120 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Transistor C 340 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 200 x 100 mm / 13.8 x 7.9 x 3.9 inch
Notes

US export model.
FM: 88 - 108 MHz.
SW: 5.9 - 7.4 MHz.
Compare with very similar German domestic model Grundig Concert-Boy Recorder C340.

AM/FM/LW/SW with tape deck recorder.
- Volume, bass, treble and tuning knobs
- Light dial button
- OSC button
- AFC button
- Battery meter indicator
- Antenna car jack connector
- input/output connector for tape deck
- work with 6 X D battery or AC power

Model page created by a member from A. See "Data change" for further contributors.
