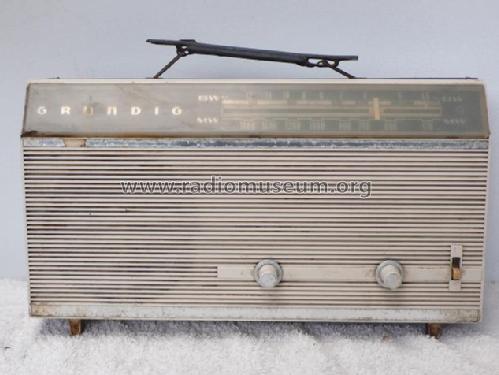

Transonette 70

Transonette 70; Grundig Radio- (ID = 67538) Radio

Transonette 70; Grundig Radio- (ID = 67539) Radio

Transonette 70; Grundig Radio- (ID = 632809) Radio
Transonette 70; Grundig Radio- (ID = 223735) Radio Transonette 70; Grundig Radio- (ID = 223736) Radio
Transonette 70; Grundig Radio- (ID = 1660483) Radio Transonette 70; Grundig Radio- (ID = 1660485) Radio
Transonette 70; Grundig Radio- (ID = 1993039) Radio Transonette 70; Grundig Radio- (ID = 1993040) Radio
Transonette 70; Grundig Radio- (ID = 1993041) Radio Transonette 70; Grundig Radio- (ID = 1993042) Radio
Transonette 70; Grundig Radio- (ID = 1993043) Radio Transonette 70; Grundig Radio- (ID = 1993044) Radio
Use red slider bar for more.
Transonette 70; Grundig Radio- (ID = 223735) Radio
Grundig Radio-: Transonette 70 [Radio] ID = 223735 600x382
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transonette 70, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ebay Nr. 6635153942 bearbeitet

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1965–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF126 AF126 1N60 1,4St1 AF127 TF65 AC126 AC126
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Transonette 70 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 170 x 100 mm / 11.8 x 6.7 x 3.9 inch
Notes KW-Bereich 4,5 bis 12,5 MHz.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
Literature/Schematics (1) -- Schematic
