• Year
  • 1977/1978
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 163345
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 220/ 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Triumph 1427UM - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 400 x 300 x 250 mm / 15.7 x 11.8 x 9.8 inch
  • Notes

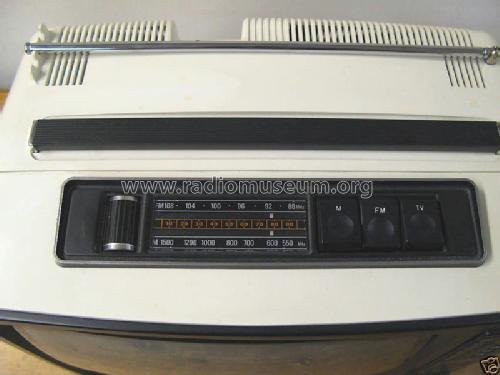

  • Grundig Triumph 1427 UM Super Electronic;
    14"/36 cm s/w TV mit elektronischem CCIR B/G VHF/UHF Tuner mit 6 Sensortasten, UKW bis 108 MHz/MW Radio, Kopfhörerbuchse, Teleskop Antenne.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Grundig Radio-: Triumph 1427UM

Threads: 1 | Posts: 3

hello radio friends, I own this tv and looking for the AM/FM radio schematic, someone know where to find it?  Thanks a lot .

Best regards. Giuseppe.

Giuseppe Feniello, 22.Oct.17

Weitere Posts (3) zu diesem Thema.
