UKW-Record-Boy 203

UKW-Record-Boy 203; Grundig Radio- (ID = 40799) Radio

UKW-Record-Boy 203; Grundig Radio- (ID = 40800) Radio

UKW-Record-Boy 203; Grundig Radio- (ID = 1411027) Radio

UKW-Record-Boy 203; Grundig Radio- (ID = 1411029) Radio

UKW-Record-Boy 203; Grundig Radio- (ID = 1411031) Radio

UKW-Record-Boy 203; Grundig Radio- (ID = 1411033) Radio
UKW-Record-Boy 203; Grundig Radio- (ID = 280) Radio UKW-Record-Boy 203; Grundig Radio- (ID = 11543) Radio
UKW-Record-Boy 203; Grundig Radio- (ID = 275892) Radio UKW-Record-Boy 203; Grundig Radio- (ID = 1098012) Radio
UKW-Record-Boy 203; Grundig Radio- (ID = 1098013) Radio
Use red slider bar for more.
UKW-Record-Boy 203; Grundig Radio- (ID = 280) Radio

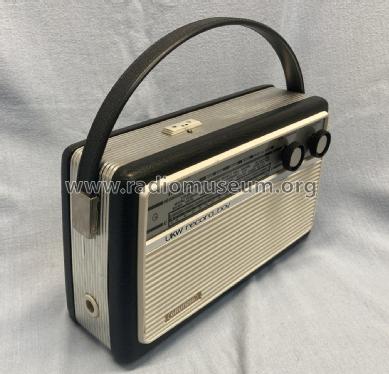

Grundig Radio-: UKW-Record-Boy 203 [Radio] ID = 280 592x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Record-Boy 203, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF125 AF126 AF126 AF126 AF126 TF65 AC128 AC128
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: UKW-Record-Boy 203 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 160 x 80 mm / 10.2 x 6.3 x 3.1 inch
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Price in first year of sale 228.00 DM
Collectors' prices
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5956 models, 5155 with images and 4011 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
