Zauberspiegel K440 wie TV T450 Rfk Ch= HF25 NF25

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1964/1965
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 109962
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

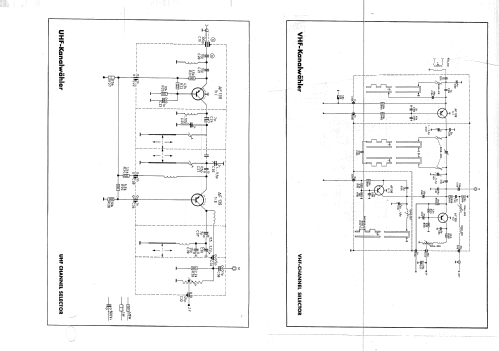

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Zauberspiegel K440 wie TV T450 Rfk Ch= HF25 NF25 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1330 x 850 x 430 mm / 52.4 x 33.5 x 16.9 inch
  • Notes
  • Fernseh-Chassis = Zauberspiegel T450;
    Rundfunk-Chassis = HF25 und NF25;
    Phono-Chassis = AG1025. Stereo-Decoder 4 oder 5 nachrüstbar.
  • Net weight (2.2 lb = 1 kg)
  • 80 kg / 176 lb 3.4 oz (176.211 lb)
  • Price in first year of sale
  • 2,550.00 DM
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
