• Year
  • 1964/1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 109912
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

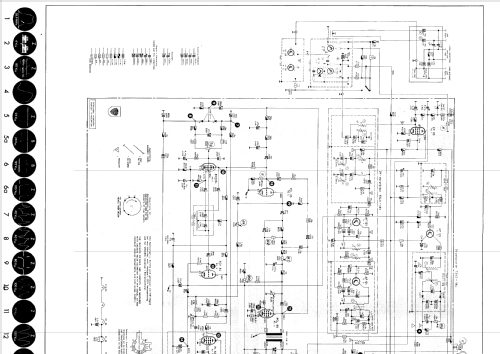

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Zauberspiegel T420 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 640 x 500 x 280 mm / 25.2 x 19.7 x 11 inch
  • Notes
  • VHF/UHF. Anschraubbeine oder Fußgestell gegen Mehrpreis (32,- bzw. 58,- DM).
  • Net weight (2.2 lb = 1 kg)
  • 33 kg / 72 lb 11 oz (72.687 lb)
  • Price in first year of sale
  • 1,160.00 DM
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
