• Country
• United States of America (USA)

• Manufacturer / Brand
• General Household Utilities Co. (Grunow); Chicago Ill.

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97324

• • Brand: Grunow (trade name)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6K7 6A8 6K7 6K7 6G5 6H6 6C5 6C5 6F6 6F6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

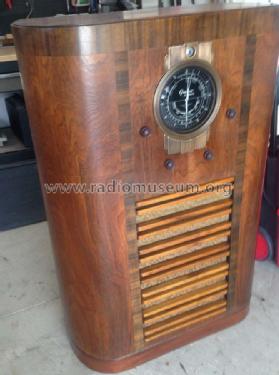

• Model: Grunow 1191B Ch= 11-G - General Household Utilities Co

• Shape
• Console with any shape - in general

• Notes

• Speaker 12G3-1. See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

• Source of data
• Photofact Folder, Howard W. SAMS

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 01, 1926-1938

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
