Pygmée 5

Pygmée 5; Gunther Radio; (ID = 147849) Radio Pygmée 5; Gunther Radio; (ID = 147852) Radio

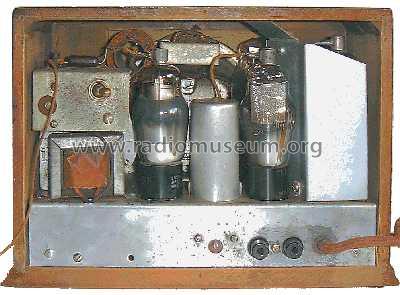

Pygmée 5; Gunther Radio; (ID = 147853) Radio Pygmée 5; Gunther Radio; (ID = 147854) Radio
Use red slider bar for more.
Pygmée 5; Gunther Radio; (ID = 147849) Radio
Gunther Radio;: Pygmée 5 [Radio] ID = 147849 640x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pygmée 5, Gunther Radio; Brussels

Country:  Belgium
Manufacturer / Brand:  Gunther Radio; Brussels
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 77 43 25Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 223 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Pygmée 5 - Gunther Radio; Brussels
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 260 x 180 x 120 mm / 10.2 x 7.1 x 4.7 inch
Notes "Hot tail" mains cable, loudspeaker Magnavox 165
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data - - Data from my own collection

Model page created by John Hupse. See "Data change" for further contributors.
