362W

362W; Hagenuk N&K, (ID = 37872) Radio
362W; Hagenuk N&K, (ID = 37826) Radio 362W; Hagenuk N&K, (ID = 2388442) Radio

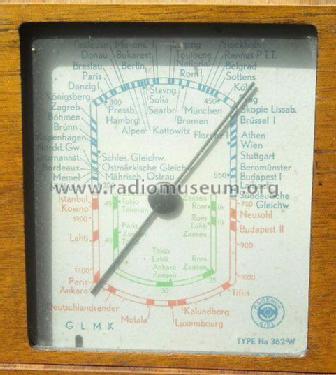

362W; Hagenuk N&K, (ID = 2388444) Radio 362W; Hagenuk N&K, (ID = 2388443) Radio
362W; Hagenuk N&K, (ID = 1145190) Radio 362W; Hagenuk N&K, (ID = 1279475) Radio
362W; Hagenuk N&K, (ID = 1279476) Radio
Use red slider bar for more.
362W; Hagenuk N&K, (ID = 37826) Radio
Hagenuk N&K,: 362W [Radio] ID = 37826 933x669

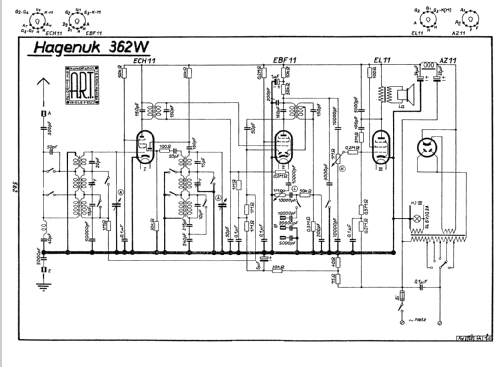

Select picture or schematic to display from thumbnails on the right and click for download.
For model 362W, Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

Country:  Germany
Manufacturer / Brand:  Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 EL11 AZ11
Main principle Superheterodyne (common); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 362W - Hagenuk N&K, Hanseatische App.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 320 x 230 x 165 mm / 12.6 x 9.1 x 6.5 inch
Notes Reflex-Super (ZF-Stufe verstärkt NF), Exportgerät (nicht für den deutschen Markt bestimmt).
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Radio-Helios, 18. Jahrg. (1941) Heft 24
