- Country
- Germany
- Manufacturer / Brand
- Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Year
- 1929/1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2253
Schnorr Radio 1930
Schnorr Radio 1930

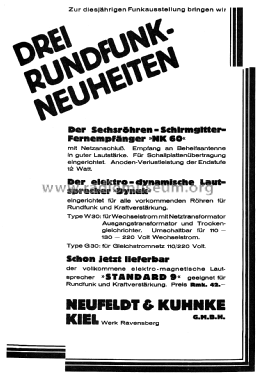

Die Sendung, Nr. 35, 1929
Original Prospekt
Original Prospekt
- Number of Tubes
- 7
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 3 Special; 2 AF stage(s); Anode bend detection
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: NK60 - Hagenuk N&K, Hanseatische App.
- Dimensions (WHD)
- 640 x 270 x 260 mm / 25.2 x 10.6 x 10.2 inch
- Notes
- beleuchtete Trommel-Skala.
- Price in first year of sale
- 640.00 RM !
- Source of data
- Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Mentioned in
- Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)
- Literature/Schematics (1)
- Die Sendung (Nr. 35, 1929)
