• Country
• Germany

• Manufacturer / Brand
• Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

• Year
• 1931 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183332

• Number of Tubes
• 3

• Valves / Tubes
• RENS1204 RE304 RGN1054

• Main principle
• TRF without regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Induction Loudspeaker (very rare !)

• Material
• Bakelite case

• from Radiomuseum.org

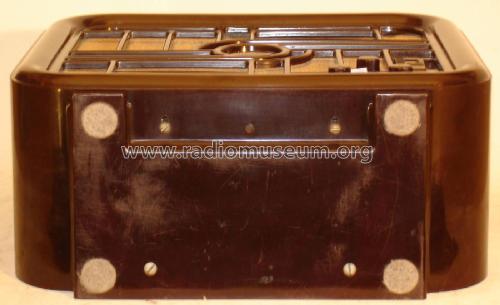

• Model: NK-200 - Hagenuk N&K, Hanseatische App.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 370 x 180 mm / 15.7 x 14.6 x 7.1 inch

• Notes
• Gehäuseform wie Farrand-Inductor.
  Loftin-White-Schaltung.
  Lautsprecher: Ten Pas-Farrand.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
