175W-ULA; Harmon, Turku (ID = 195633) Radio
Harmon, Turku: 175W-ULA [Radio] ID = 195633 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 175W-ULA, Harmon, Turku

Country:  Finland
Manufacturer / Brand:  Harmon, Turku
alternative name

Radiokeskus Oy, Turku
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EZ80 EL41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: 175W-ULA - Harmon, Turku
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 448 x 305 x 255 mm / 17.6 x 12 x 10 inch

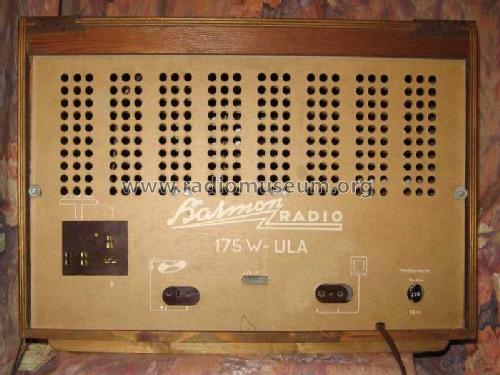

Notes The 175W-ULA (175 W-ULA)shows an input for a record player, external speaker output, built-in FM antenna. This radio 175W-ULA (175 W-ULA) is made by Oy Harmon Radio Ab Helsinki.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Price in first year of sale 27'900.00 FIM

Model page created by Jari Aalto. See "Data change" for further contributors.



All listed radios etc. from Harmon, Turku
Here you find 34 models, 23 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
