• Year
  • 1963 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 105462
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

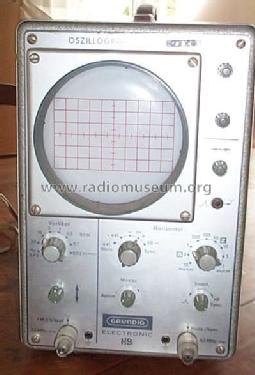

  • Model: Oszillograph W2/13 [PLL80] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 205 x 330 x 460 mm / 8.1 x 13 x 18.1 inch
  • Notes
  • Siehe auch Variante mit Röhre ELL80 an Stelle von Röhre PLL80.

  • Net weight (2.2 lb = 1 kg)
  • 10.5 kg / 23 lb 2 oz (23.128 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
