• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 105501

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

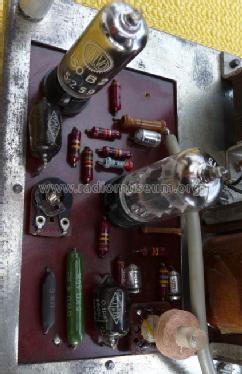

• ECF80 ECF80 EF80 150B2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Wobbelsender WS11 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 300 x 230 x 190 mm / 11.8 x 9.1 x 7.5 inch

• Notes
• Nur AM-ZF: 460 kHz ± 50 kHz.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Funk-Technik (FT) (12/1961, S. 433 / Neue Prüf- und Messgeräte)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
