• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25249

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC169 OC169 OC71 OC71 OC72 OC72 OA79

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

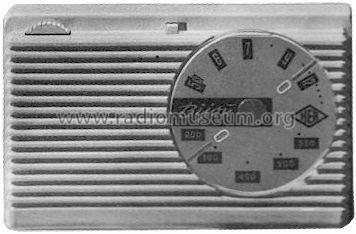

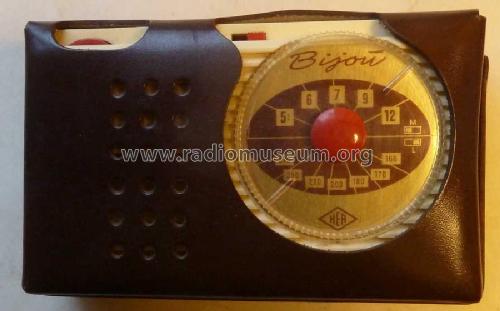

• Model: Bijou LW [LW MW] - HEA; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
•

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Museums Bote, Österr. (Heft 107/2001, S.10 ff, Gerätebeschreibung)

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
