• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25253

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 459 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

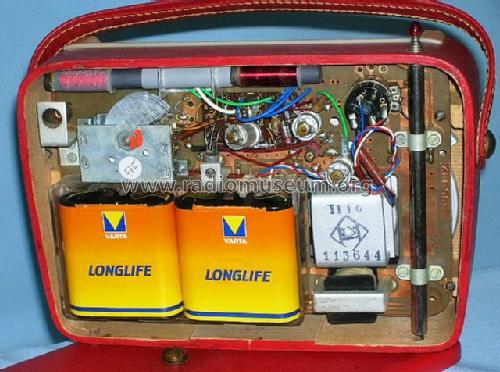

• Model: Trixi 3 [KW MW LW] - HEA; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 75 x 160 mm / 9.4 x 3 x 6.3 inch

• Notes
•

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• RADIOBOTE, Österr. (Hefrt 10/2007, S.17 ff, Gerätebeschreibung)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
