• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8559

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72 OA85 OA79

• Main principle
• Superheterodyne (common); ZF/IF 459 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

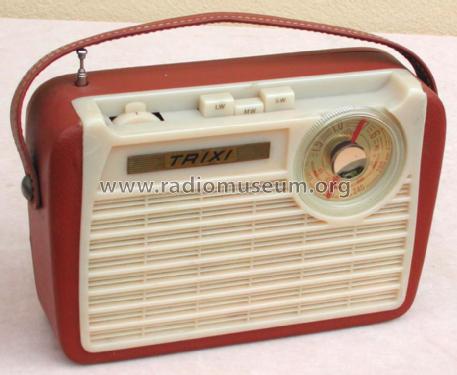

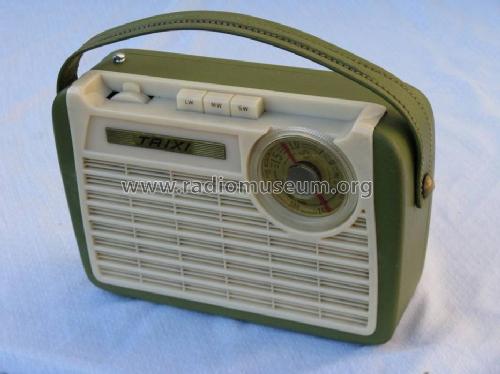

• Model: Trixi 59 [LW MW KW] - HEA; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 150 x 73 mm / 9.4 x 5.9 x 2.9 inch

• Notes
• Koax-Anschluß für Autoantenne. Tonschalter (3-fach). Teleskopantenne (90 cm). Ferritantenne (14 cm).

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 1,280.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
