- Country
- Germany
- Manufacturer / Brand
- Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
- Year
- 1987
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 99828
-
- alternative name: Gerätebau Limbach VEB
- Brand: VEB Elektromechanik Mittweida
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

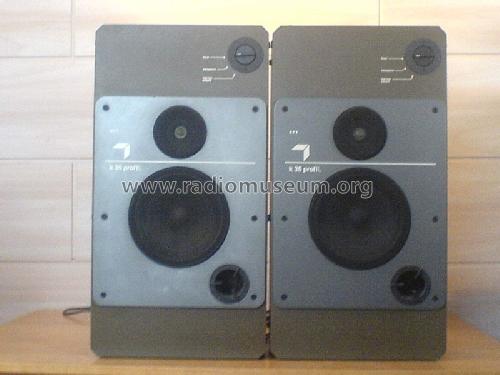

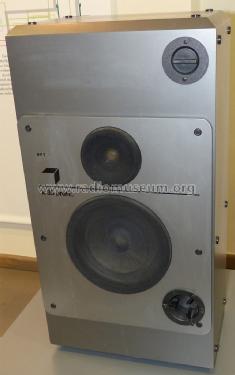

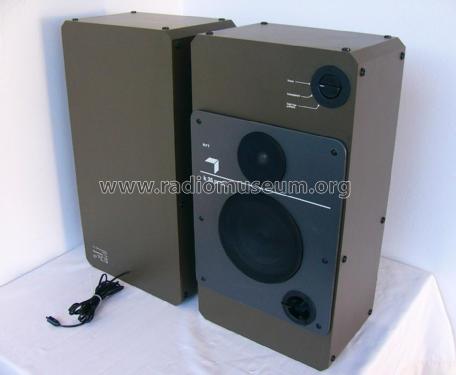

- Model: K35 Profil - Heli Gerätebau, Hempel KG;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 340 x 650 x 235 mm / 13.4 x 25.6 x 9.3 inch
- Notes
- als Standbox konzipiert; Tieftonlautsprecher L2926 40 W, Kalottenhochtonlautsprecher L9806 25 W. Nennbelastbarkeit 50 W, Höchstbelastbarkeit 100 W, 4 Ohm, Übertragungsbereich 40...22000 Hz.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Price in first year of sale
- 485.00 DM
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
